Tesla 1024A "Bel Canto"

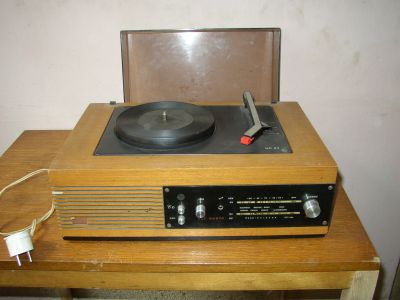

Bel Canto, foto Jiří Košta

Rok výroby/ Production: 1972/73

Polovodiče/ Semiconductors: 3x OC170, 2x GF506, 2x KC508, GC511/521, GA201, GA202, 2-GA206, KA501, 2x KY701R

Popis: Stolní tranzistorové gramorádio (VKV OIRT, KV, SV, DV) s napájením ze střídavé sítě 220V/50Hz. Oválný reproduktor, feritová anténa, plošné spoje, gramochassis HC07. Dřevěná skříň, stupnice z plexiskla, přípojka pro externí napájení, magnetofon, gramofon, reproduktor a anténu. Přijímač je typu 338AB "Toccata".


Description: Table transistor AM/FM superheterodyne with gramoplayer HC07, powered from 220V/50Hz. Oval speaker, ferrite antena, printed circ. boards. Wooden cabinet, plexiglass scale, connector for external power, tape recorder, speaker and antena. Based on the 338AB "Toccata" chassis.
